CPS Products SVW (Solenoid Valve Wireless)
Problem and Objective
​
-
To create a wireless Bluetooth enabled solenoid valve product for precision use while servicing commercial and residential air conditioning system refrigerant systems.
​
-
Service Technicians find their job difficult when wasting valuable AC refrigerant coolant while having to use products that are cumbersome and not precise.
​
-
Product is cost sensitive and needs to maintain a high sales margins so design and engineering details need to be thought out carefully High focus on ROI on this and all new Smart tool products for the upcoming 2018 quarters
Solution Objective
​
-
To design a well thought out user friendly ,wireless solution that can tie into the companies new app based CPS Link technology.
DESIGN DEVELOPMENT
Design development began with mood board and design discovery reaserch

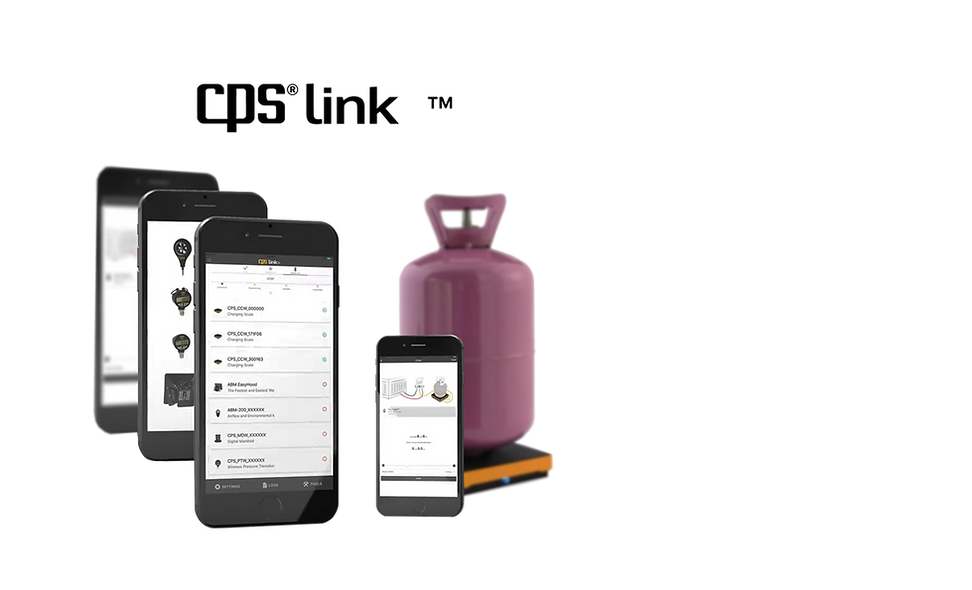

Product was to be integrated into CPS's wireless lineup of products. These products use CPS's unique app CPS LINK.
CONCEPT DEVELOPMENT

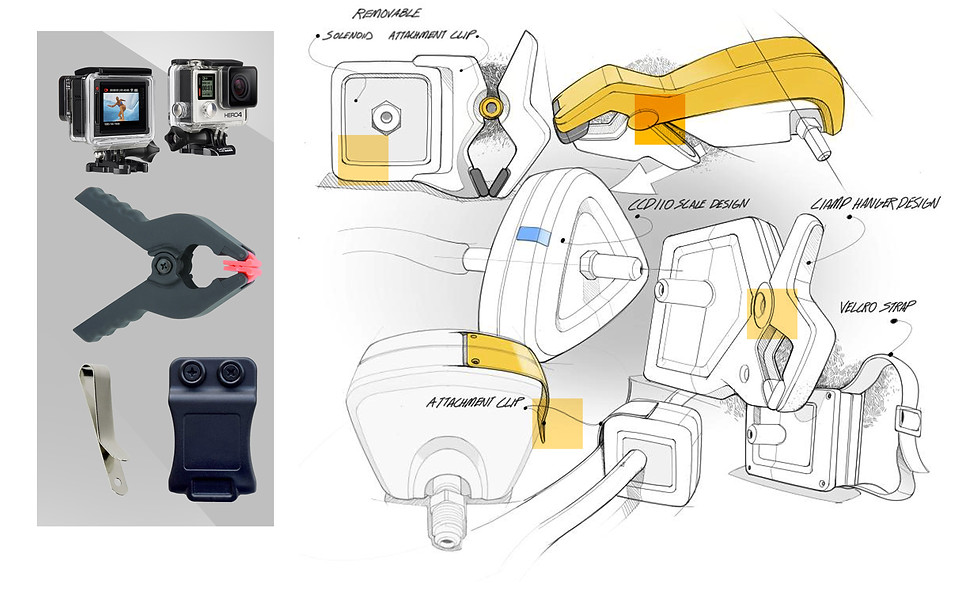

Extensive industrial design processes were unitized for design evolution development.

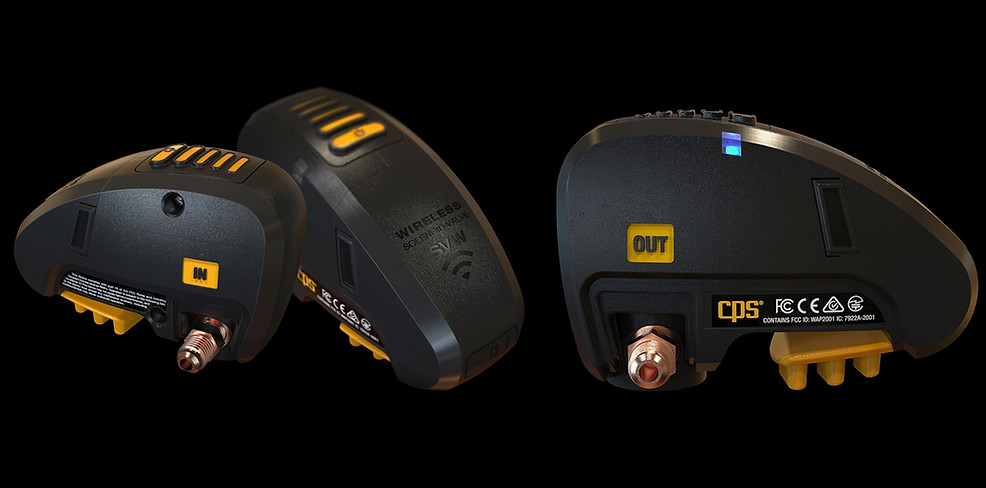

3D cad was derived directly from concepts.
Design development was refined after review with sales and marketing.
PHYSICAL UI DEVELOPMENT
Concept validation via prototyping
Keys to success: Cad to prototyping
​
Physical design was further developed with

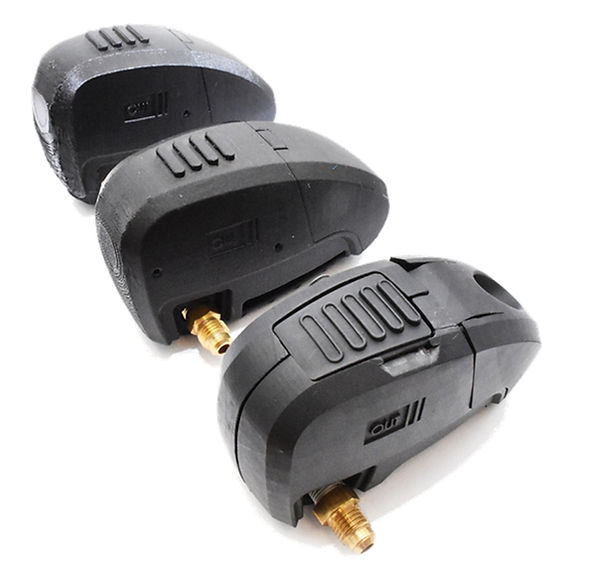

prototypes.
Prototypes were used for ETL and UL standards testing.
​

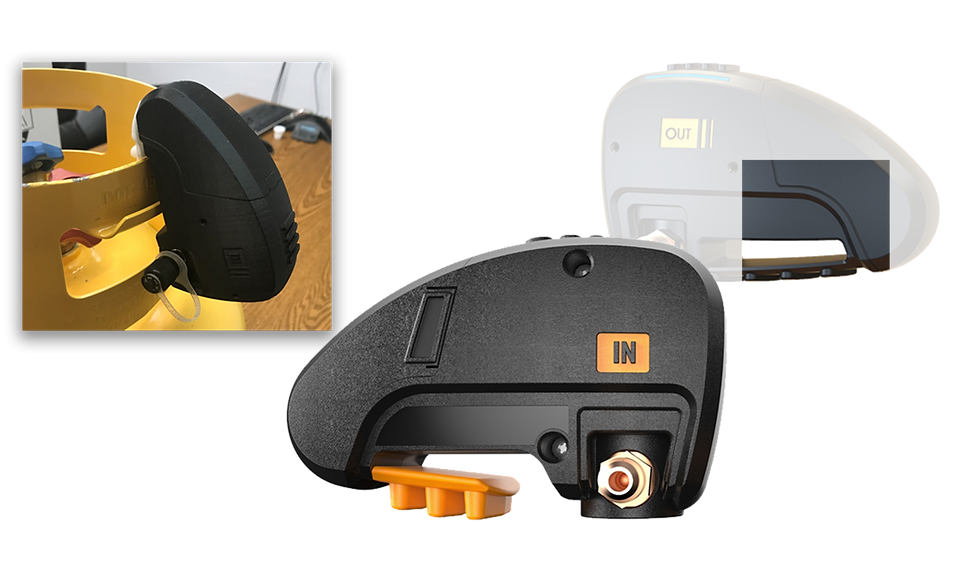

Testing Labs used these SLA prototypes to test PCB and Bluetooth transponder configurations.
DESIGN FOR MANUFACTRING (DFM)
PRODUCTION
FEA testing was used to validate and improve design​
MANUFACTURING

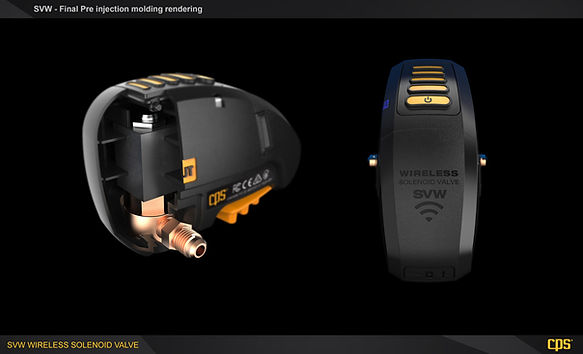

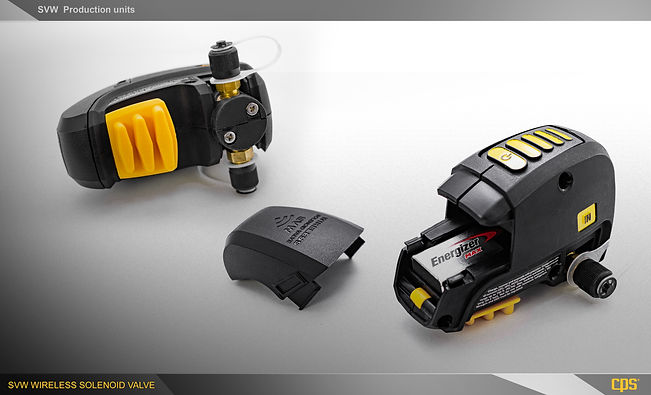

Design refinement and first article (T1) design review.
Key to success: Close collaboration with overseas tooling factory dev team helped streamline production

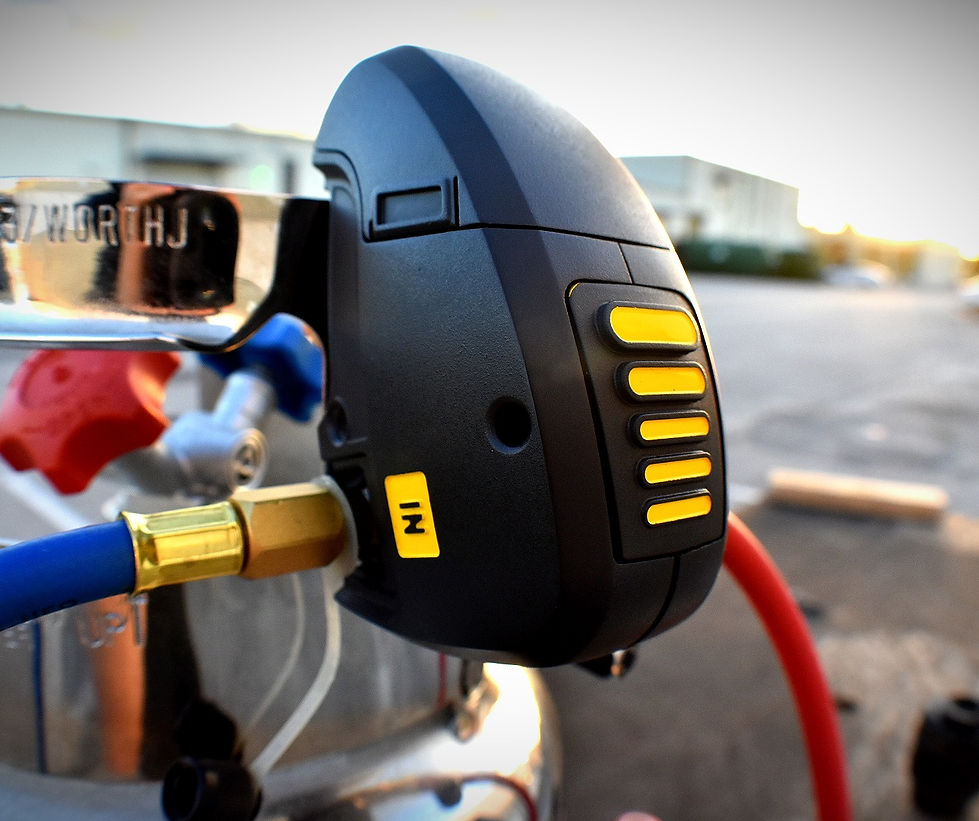

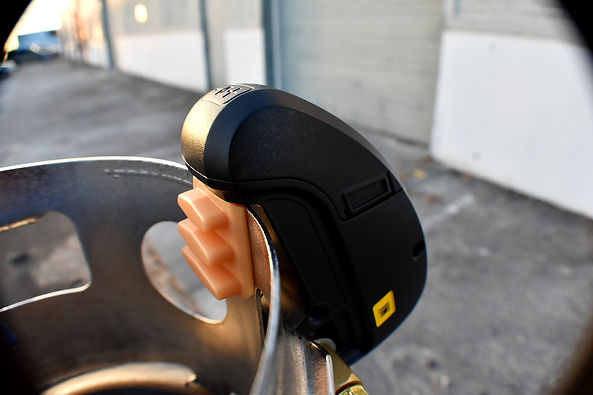

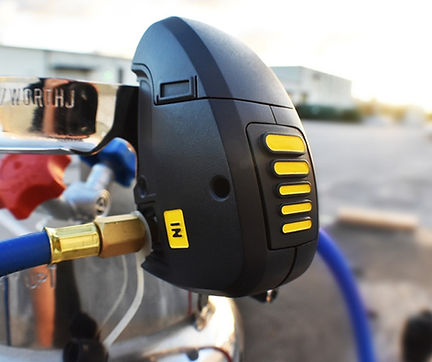

SVW in use on a HVAC tank transfering chemical under the control of the CPS Link app
